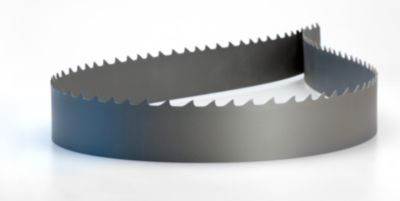

    LENOX CONTESTOR XL™  BI-METAL BAND SAW BLADES

    LENOX CONTESTOR XL™ BI-METAL BAND SAW BLADES

    High Performance Sawing of Large, Difficult to Cut Metals

    INCREASED WEAR RESISTANCE DELIVERS LONGER BLADE LIFE
    New HSS edge wire increases tooth hardness for better abrasive wear resistance
    Patent pending chip controlling design reduces heat and wear

    IMPROVED CHIP FORMATION HELPS PENETRATE DIFFICULT TO CUT MATERIALS

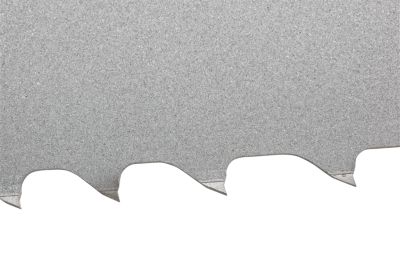

    Variable tooth heights and multi-level set creates deeper, narrower chips
    High Rake angles reduce cutting forces

    OPTIMIZED DESIGN FOR STRAIGHTER CUTS ON LARGE BLOCKS
    Shallow gullet construction increases beam strength

    Specifications

    WIDTH x THICKNESS TPI
    IN MM 0.7/1.0 1.0/1.3 1.4/2.0 2/3 3/4 4/6
    1-1/4 x .042 34 x 1.07
    1-1/2 x .050 41 x 1.27
    2 x .063 54 x 1.60
    2-5/8 x .063 67 x 1.60
    3 x .063 80 x 1.60
    • Mold Steels
    • Stainless Steels
    • Tool Steels
    • Titanium Alloys
    • Nickel-Based Alloys (Inconel®)
